ONYX – Be smart when playing with the sun

The new 3D wind sensor for the ONYX system is an indispensable wind protection for any articulated arm awning. With a size of only 40 by 40 millimetres, it is the smallest wind sensor for awnings available on the market and integrates perfectly into all the existing products. The sensor continuously measures the vibrations occurring on the awning during wind. If the set threshold value is exceeded, the awning is automatically retracted. A CR2032 button cell battery supplies the sensor with power. Replacement is effortless as the sensor is attached to a mounting plate by magnets and can be easily removed and reattached.

The sun and brightness sensor ONYX.TAG sun continuously measures the current brightness and controls shading systems fully automatically according to a freely adjustable threshold value. ONYX.TAG sun is battery-operated and measures only 4 x 4 centimetres. The sensor is magnetic and is easy to attach to a mounting plate provided on the façade or sun protection product. ONYX.TAG sun is the ideal glare and heat protection for outdoor use. The adjustment range of the sensor is possible between 0 and 100,000 Lux.

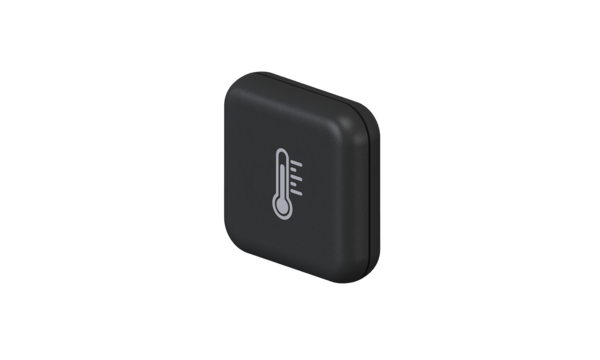

The temperature and humidity sensor ONYX.TAG temperature is the perfect fully automatic temperature monitor for indoor areas. The sensor can also monitor frost outside. ONYX.TAG temperature continuously measures the current temperature and humidity and controls shading systems according to freely adjustable threshold values. The small battery-operated sensor is magnetic and can be attached to the mounting plate provided. The adjustment range of the sensor is possible between -20 and +60 degrees Celsius.

The weather sensor ONYX.WEATHER logs the external weather influences such as wind speed,
sun intensity and temperature on the façade. It transmits values for the automatic functions wind, sun and
dawn for morning and evening.

The measured brightness is used to adjust your sun shading products exactly to your sensation. This makes it
possible for them to be automatically set to the correct position at sunrise or sunset.

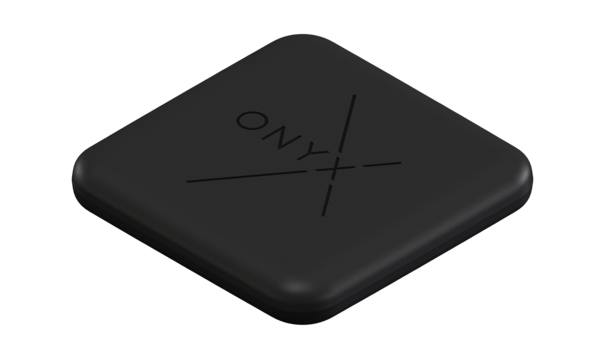

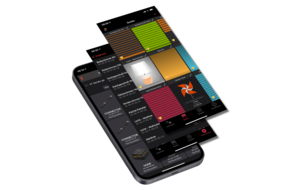

With a side length of 8 centimetres and a height of 1.3 centimetres, ONYX.CENTER is the smallest control centre for sun protection on the market. The centre box ONYX.CENTER serves as an interface between the smart phone and the individual control units of the HELLA control system, ONYX. The system is wireless and achieves enormous ranges across several rooms with an integrated antenna. A coloured LED ring informs you clearly about the operating mode. Likewise, the centre box forms the interface to other Smart Home controls in the building. This makes the centre box the heart in the smart home and networks heating, ventilation, light, sun protection and much more.

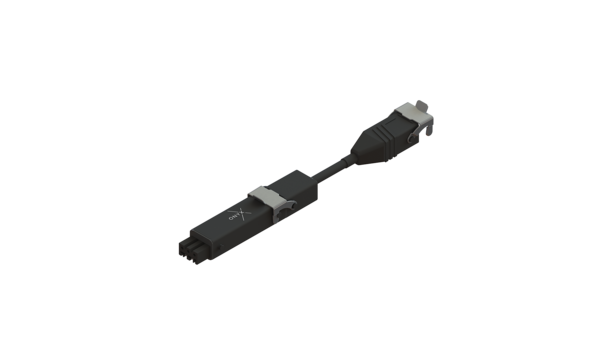

The ONYX.CONNECTOR is perfectly suitable for the use in the box of the sun protection product. It is plugged between the power supply and the existing motor and thus is perfectly suitable for the subsequent installation in existing or new buildings. It offers the easiest type of wiring to control a shading element via ONYX.

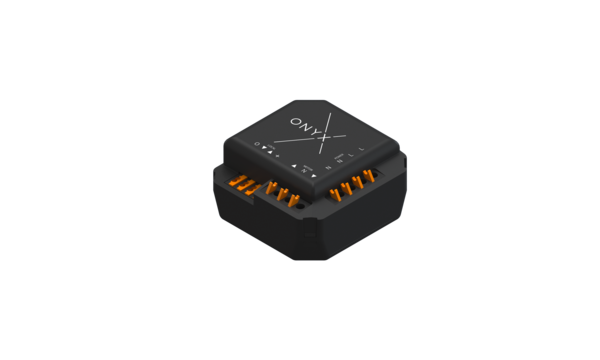

Each shading element is provided with a control node ONYX.NODE that is connected inbetween the power supply and the existing motor. The control node makes any Individual shading element fit for a smart home and offers the possibility of using a push button.

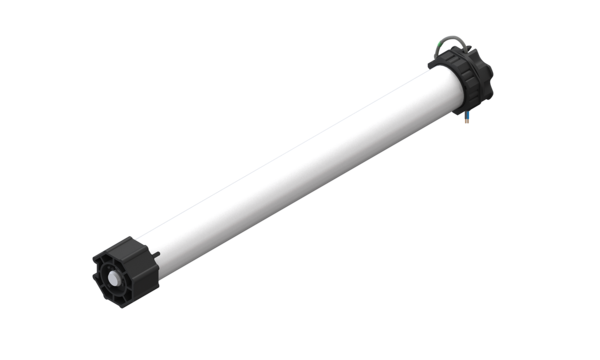

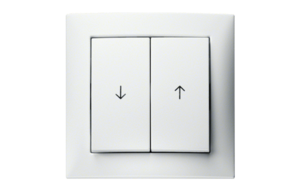

The ONYX Motor with integrated radio receiver from HELLA with astonishing smooth running performance – optimised for modern demands. This is a tubular motor for roller shutters with Plug & Play Technology. If no radio control is required, the SILENT motor can also be operated wire-bound with standard roller shutter switches.
