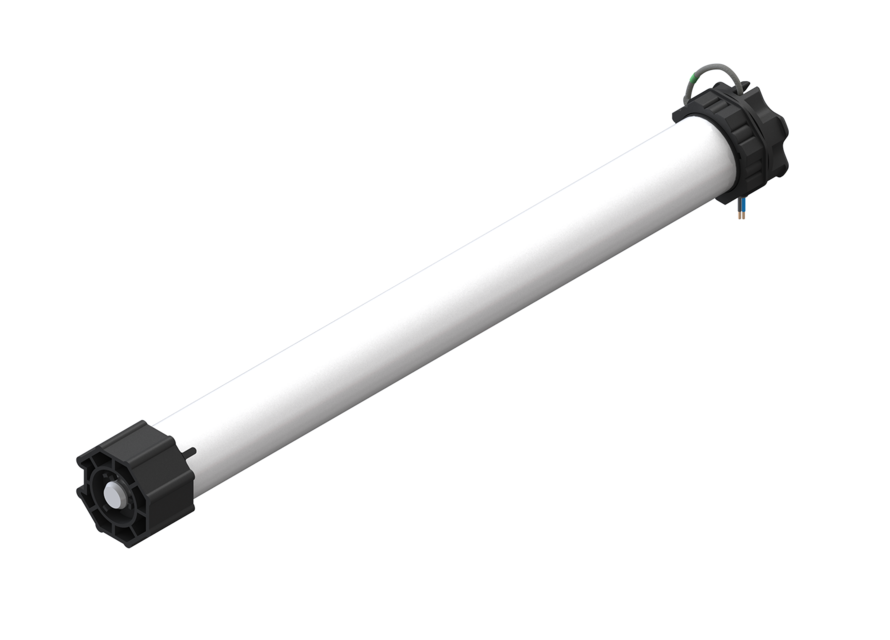

ONYX SILENT Motor

The ONYX Motor with integrated radio receiver from HELLA with astonishing smooth running performance – optimised for modern demands. This is a tubular motor for roller shutters with Plug & Play Technology. If no radio control is required, the SILENT motor can also be operated wire-bound with standard roller shutter switches.

Scroll down
About the product
More comfort
More safety
Technical details
Operating options
Download
Frequently asked questions
Further products
Whisper mode

The ONYX radio motor is provided with 2 different speeds of rotation, which easily can be activated via the operating device (hand-held radio transmitter ONYX.CLICK or smart phone). In the whisper mode (low speed) the drive is practically silent. The running performances are optimally adapted, so that all remain quiet, especially when starting and stopping the movement of the curtain.<> In combination with other ONYX components (ONYX.CLICK, ONYX.CENTER, ONYX.WEATHER) the SILENT motor can show its strengths: so it is possible for example, to execute automatic programmes in the whisper mode only, while manual orders are executed in the standard mode (quicker running performance).

More comfort
  • Very smooth running at any speed
  • Speed in 2 steps, optimum smoothness at lower speed
  • Smooth starting and stopping
  • Protection of the roller shutter system through gentle travel movements
  • Whisper-quiet soft brake
  • Optimal adaptation (e.g. torque) of the drive to the roller shutter
  • Plug&Play technology: The end positions are detected and taught in independently
More safety
  • Smart detection of obstacles: Reliably detects obstacles incl. relieve motions and adapts itself to the conditions
  • Anti freeze protection: Stops when the roller shutter is frozen
  • Resists high push-up pressure from outside
  • Radio receiver in the motor bidirectional and with proven routing function
  • Encryption in ONYX system with AES-128 bit
  • Suitable for Top Safe shaft and 60 mm octagonal shaft
Technical details
  • Tube motor with star head (SH)
  • Torque up to 10 Nm
  • Intelligent force measurement
  • Two regulated speeds (standard run or whisper mode)
  • Long Running time 10 min (thermal protection)
  • Control up/down and free run
  • Mechatronic end position detection with soft shut-off
  • Silent soft brake
Operating options
w-onyx-click-r-002

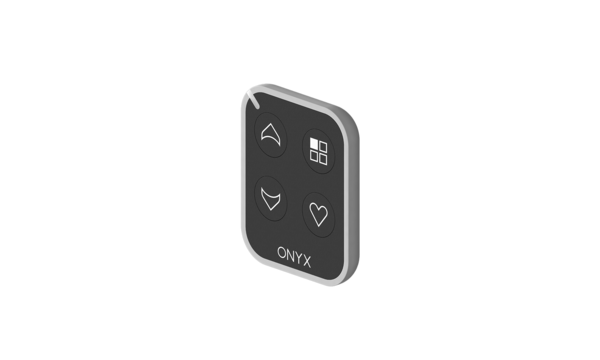

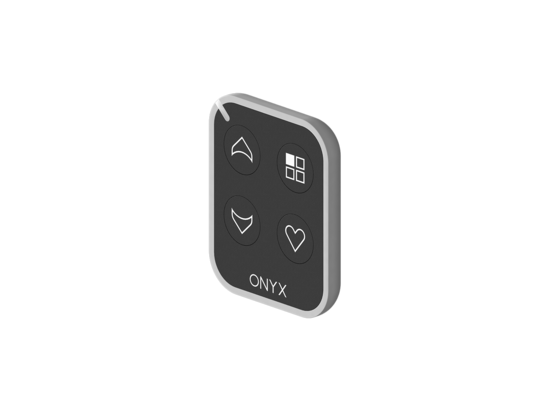

ONYX.CLICK
With the hand-held radio transmitter up to 5 ONYX.CONNECTOR can be programmed into one channel. One ONYX.CLICK has 5 channels and is therefore able to operate up to 25 ONYX.CONNECTOR.
w-screen-onyx-app-iphone-gefaechert

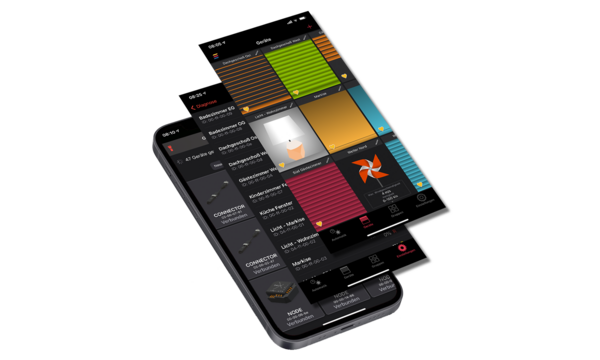

App with ONYX.CENTER

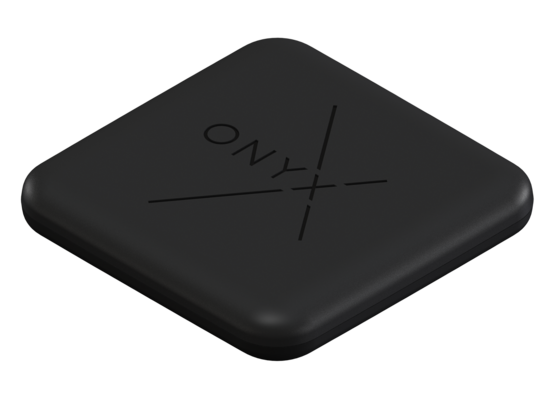

If you would like to operate it via an app, this is possible via an additional center box ONYX.CENTER. Up to 50 ONYX.CONNECTOR can be programmed into a center box ONYX.CENTER.
To the download area
Further documents on this product can be found in the download area
